K&R Equipment in Muskogee, Oklahoma.

Call: 918-215-7284

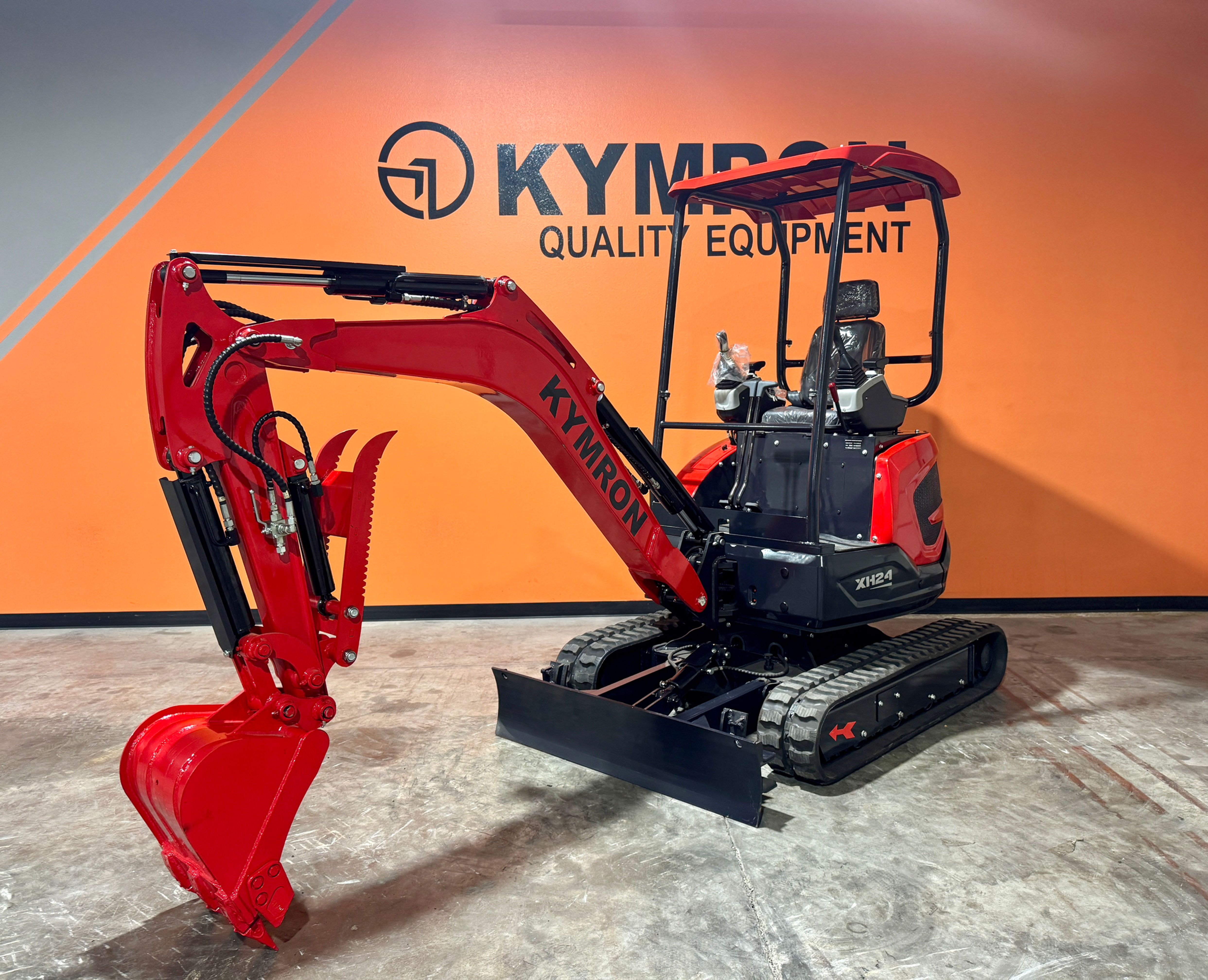

2024 KYMRON XH24 Mini Track Excavator. This excavator has a 25 HP Kubota diesel engine and features Side Swing Boom and retractable tracks included standard with the excavator. This is one of our pro series models with smooth operation controls for precise operation. It features a comfortable seat with head rest and armrest. The excavator weighs 5,060Lbs and is capable of digging a little over 8ft deep. The XH24 comes in different color options. Give us a call for up-to-date inventory.


Th KYMRON XH24 has an exclusive variable speed plunger pump adding 30% more power compared to a gear pump.


The factory installed (Side Swing Feature) allows you to swing the boom approximately 45 degrees to the left or right to get into tight spaces and position the boom to dig parallel to walls and fences. With all excavators you still have the ability to swing your cab 360 degrees in both directions as well.


The XH24 also includes the factory installed retractable tracks which can be retracted in to make the overall width of the machine 47” wide to fit through tight spaces or extended them out to make the overall width 59” wide along with 2 speed drive motors to get from to get around the job fast.


The advantage of KYMRON machines is our exclusive design which is set up to allow big-name brand Hydraulic Pumps, Drives and Motors to be installed as direct replacements on our machinery.


Some other features of the XH24 include a spool valve block that is manufactured to the tightest of tolarences to make a smooth comfortable operation.


Standard Included Features:


- 2-Year Powertrain Warranty

- 5060 lbs. Operating Weight w/ Rubber Tracks

- 25 HP Kubota EPA4 Diesel Engine

- 2,450Lb lifting

- Side Swing Boom

- Retractable Tracks

- 8' digging depth

- Exclusive Plunger Pump

- Upgraded 2 speed Drive Motors

- Upgraded Swing Motor

- 17" Bucket w/ Side Skirts and Teeth

- 4-Post ROPS or Rain cab option

- Two-Speed

- Hydraulic Thumb

- Hydraulic Joystick

- Hydraulic Tension Wheel

- Hydraulic Oil Cooler

- ISO Controls

- Auxiliary Hydraulics

- 15.9GPM Flow

- Push Blade

- Glow Plugs

- Canopy

- Digital Hour Meter

- LCD Display

- Operator Manual




- Total Height: 92"

- Total Width: 47" (retracted)

- Track Length: 6'

- Track Width: 10"




- Max. Digging Depth: 8'

- Max. Digging Height: 12' 9"

- Max. Digging Radius: 13' 2"

- Max. Dumping Height: 9' 6"


Factory installed Optional Features:

Metal Tracks $1,400.00

Hydraulic Quick hitch $1,000.00

All Glass Rain Cab $1,700.00


These excavators are new units and attachments are available. Low cost of ownership and very affordable prices compared to other leading brands which would run you upwards of $60,000. Come try one out and put it to the test! Save yourself all the money from rental or excavator costs and own a unit today.

KYMRON XH24 Mini Excavator (w/ Kubota Diesel Engine)

  • Buyer is responsible for shipping. View our shipping page for a list of trusted freight brokers:
